EPABX / IP-PBX

Traditional and IP PBX systems starting from 08 Ports to 1000 Ports and so on…..

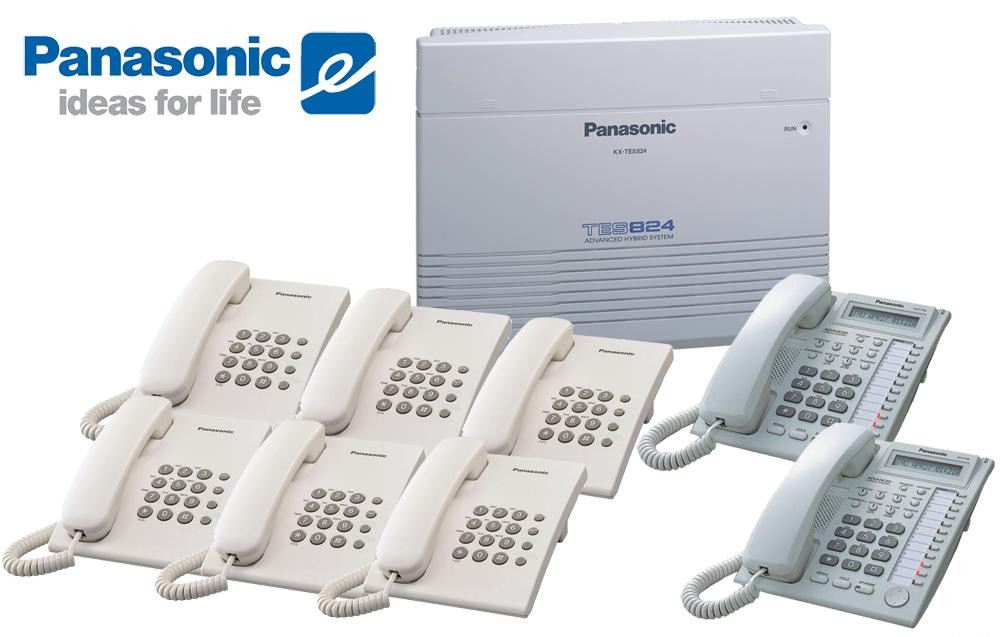

Panasonic KX-TES824

Product details:

Model No

KX-TES824

No Of Lines

Up to 8 CO lines and 24 Extensions

Brand

Panasonic

Weight

4.5 Kg

Feature

Built in DISA card

Product Description:

In order to keep pace with the never-ending demands of customers, we are involved in offering a wide range of Panasonic KX-TES824 PBX System.

Panasonic KX-HTS824

Product details:

Model No

KX-HTS824

No Of Lines

Up to 8 CO lines and 24 Extensions

Brand

Panasonic

Features:



System Capacity

Preinstalled

Maximum

Maximum Trunks

8 (6 if G.729a)

8 (6 if G.729a)

Total Number of Trunks

6 (G.711)

6 (G.711)

SIP

4 (G.729a)

4 (G.729a)



System Capacity

KX-HTS824



Maximum Terminal Equipment

Preinstalled

Maximum

Extensions

24

24

SIP

24

24

Analogue

8

24

DISA (ch)

4*

4*

Built-in VM (ch)

4*

4*

Doorphone (Analogue)



2

Door Opener (Analogue)

0

2

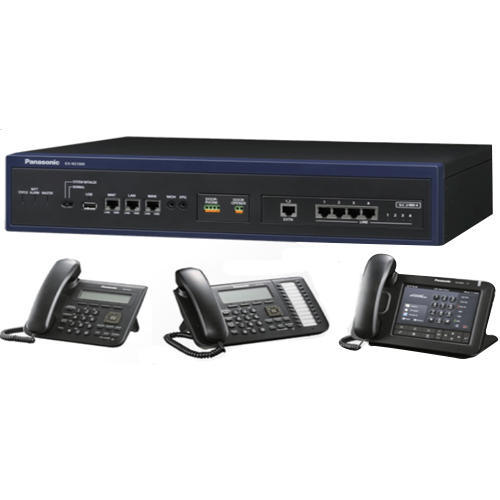

Panasonic KX-NS300

Maximum Trunks

The KX-NS300 supports the following number of trunks.

Type

Basic

System

With 1

KX-NS320

With 2

KX-NS320

With 3

KX-NS320

Total Number

of Trunks

52

82

112

142

Legacy

36

66

96

126

BRI

PRI23

PRI30

30

60

90

120

T1

E1

30

60

90

120

Analogue

12

24

36

48

IP

16

16

16

16

H.323

16

16

16

16

SIP

16

16

16

16

Maximum Terminal Equipment

The following shows the number of each terminal equipment type supported by the KX-NS300.

Type

Basic

System

With 1

KX-NS320

With 2

KX-NS320

With 3

KX-NS320

Extensions (DXDP*1)

66 (72)

98(112)

130(152)

162(192)

Legacy (DXDP*1)

34(40)

66(80)

98(120)

130(160)

SLT

2

64

96

128

DPT

18(24)

34(48)

50(72)

66(96)

APT

8

16

24

32

IP

32

32

32

32

IP-PT

32

32

32

32

SIP

32

32

32

32

SIP Phone

32

32

32

32

S-PS

32

32

32

32

DSS Console

8

8

8

8

CS

20

24

28

32

DPT-CS (2 ch)

4

8

12

16

DPT-CS (8 ch)

2

4

6

8

IP-CS

16

16

16

16

SIP-CS

16

16

16

16

PS

128

128

128

128

VM



Built-in UM (ch)

24

24

24

24

TVM Unit

2

2

2

2

Doorphone

2

4

6

8

Door Opener

2

4

6

8

External Sensor

2

4

6

8

Panasonic KX-NS1000

In the current era, Business Communications Servers should provide solutions to real world Business requirements, such as simplifying and improving communications, lowering costs and improving productivity, while flexibly adapting to the way the organization works.

The NS1000 Network Communications Server by Panasonic is designed to deliver these solutions, integrating hardware and software components in a modular way, allowing you to tailor a communications system to your specific needs.

As business communications advance, the KX-NS1000 large capacity IP communications platform enables organizations to unify and integrate a wide range of devices onto a single network. Offering centralized, multi-site, web-based programming and more, the platform can handle communications for up to 1000 users and 16 branch locations – connecting offices with real-time voice and data to better serve customers and handle sales.

The KX-NS1000 features seamless integration of telecommunications, voicemail, email, instant messaging and fax – enhancing collaboration and empowering employees to act faster and make better decisions. With easy installation to connect to existing Panasonic communication systems and a highly intuitive interface, it offers an economical and seamless migration to advanced network features.

The NS1000 is built on SIP and IP technologies, with powerful built-in Unified Collaboration and Communication components including desktop tools, voice messaging and an interactive voice response system. Partnering with a comprehensive range of terminals, accessories and applications software, ensures that systems can adapt to meet all the communication requirements of your business to support revenue growth.

With best in class, high definition voice quality and on-demand capacity enhancements, the NS1000 is the core of a powerful VoIP communications solution offering flexibility, simplicity, and productivity.

Why Choose the NS1000?

Improve Customer Responsiveness

Integrated applications for call grouping and routing, ensuring the right person takes every call.

Enhance Productivity

‘Presence’ – Know who is available, and how best to contact them at any time.

Mobility

Wireless DECT systems and mobile phone integration means you can stay in touch, even when you’re on the move.

Panasonic KX-NSX2000/1000

Maximum trunks

The KX-NSX2000/1000 supports the following number of trunks.

Type

KX-NSX2000

KX-NSX1000

Stand – alone systems

Multi – Connection

One – look Networking

Multi – Connection

Total Number

of Trunks

960 ch

960 ch

640 ch

640 ch

H.323

256 ch

256 ch

256 ch

256 ch

SIP

960 ch

960 ch

640 ch

640 ch

BRI

960 ch

640 ch

PRI23

960 ch

640 ch

PRI30

960 ch

640 ch

T1

960 ch

640 ch

E1

960 ch

640 ch

Analogue

960 lines

640 lines

The following shows the number of each terminal equipment type supported by the KX-NSX2000 / KX-NSX1000.

Type

KX-NSX2000

KX-NSX1000

Stand – alone systems

Multi – Connection

Stand – alone systems

Multi – Connection

Device



IP Device

2000

2000

1000

1000

KX-NT500 /  KX-NT300 Series*3

2000

2000

1000

1000

KX-HDV Series

KX-TGP600

SIP Phone (Third party)

2000

2000

1000

1000

Communication IP Camera*4

128

128

128

128

IP Video Doorphone*4

Legacy

2000

1000

SLT

2000

1000

DPT (DXPT*2)

1024(2000)

512(1000)

APT

640

320

DSS Console

(KX-DT590 / KX-DT390)

128

128

PS

1000

1000

1000

1000

Mobile Number in User Container

2000

2000

1000

1000

Add-on Key Module

(KX-NT505)

128

128

64

64

Add-on Key Module

(KX-NT303/KX-NT305)

2000

2000

1000

1000

CS

256

256

256

256

IP-CS

256

256

256

256

CS

256

256

Doorphone

124

124

Door Opener

124

124

External Sensor

124

124

*1 The maximum trunks of an Expansion GW cannot exceed the capacity of the KX-NSX

*2 When Digital XDP is used, the maximum number depends on the gateway system.

*3 The KX-NT300 series is not supported by the KX-NSX2000/KX-NSX1000. It is only supported by expansion gateways in a multi connection system.

*4 Communication IP cameras and IP video doorphones are not counted in the number of users.

Available Devices and Services for Each User Grade

User Grade

Device

Service

Main

Sub

Wireless

Mobile Number

UM Mailbox

Auto2-way Manager

Advanced User*1

KX-NT560, KX-NT556, KX-NT553, KX-NT551, KX-HDV430, KX-HDV330, KX-HDV230, KX-HDV130, KX-HDV100, KX-DT546*4, KX-DT543*4, KX-DT521*4, KX-TCA385, KX-TCA285, KX-TCA185, Single Line Telephone*4*5, IP-Softphone

KX-NT560, KX-NT556, KX-NT553, KX-NT551, KX-HDV430, KX-HDV330, KX-HDV230, KX-HDV130, KX-HDV100, KX-DT546*4, KX-DT543*4, KX-DT521*4, IP-Softphone

KX-TCA385, KX-TCA285, KX-TCA185

Mobile number and other public phone number

Yes

Yes

Mobile User*2

Normal User*3

*1 Requires Normal User AK, Mobile User AK and Advanced User AK.

*2 Requires Normal User AK and Mobile User AK.

*3 Requires Normal User AK.

*4 Requires Expantion Gateway.

*5 If assigned as a main device, sub device and wireless device is unavailable.

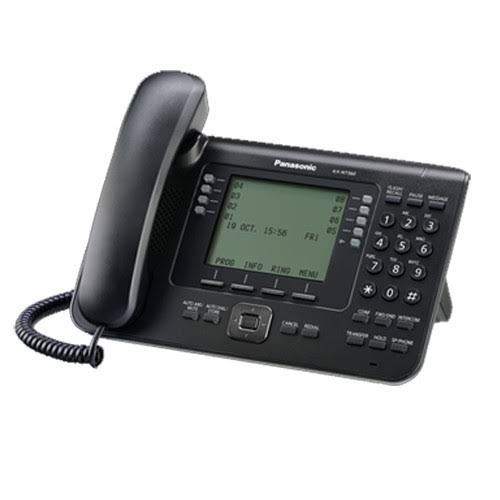

KX-NT560

  • HD Voice
  • 4.4 inch Backlight LCD Display
  • 4 x 8 Self-Labelling Flexible CO Buttons
  • Full Duplex Speakerphone
  • 2 Gigabit Ethernet Port/ PoE
  • EHS Support
  • Built-in BluetoothR

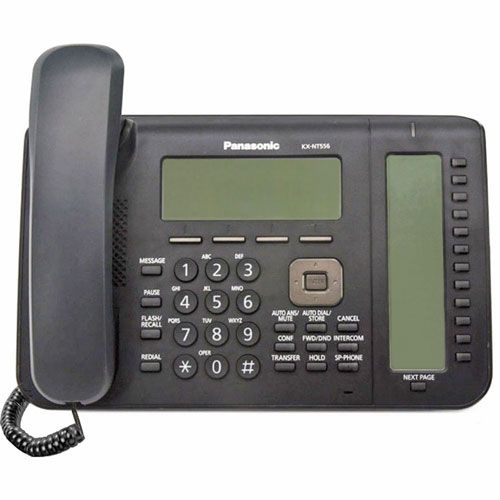

KX-NT556

  • HD Voice
  • 6-Line Backlight LCD Display
  • 12 x 3 Self-Labelling Flexible CO Buttons with Backlight LCD Display
  • Full Duplex Speakerphone
  • 2 Gigabit Ethernet/PoE
  • EHS support

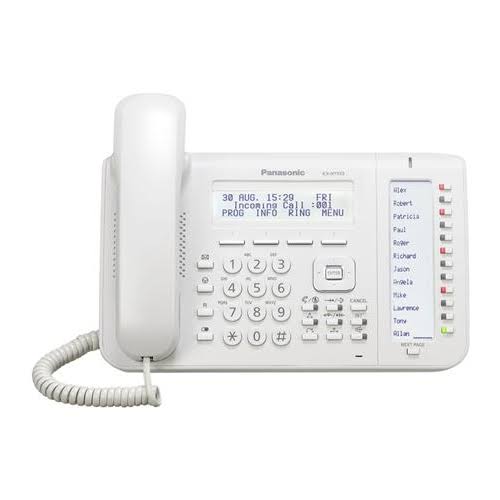

KX-NT553

  • HD Voice
  • 3-Line Backlight LCD Display
  • 12 x 2 Self-Labelling Flexible CO Buttons with Backlight LCD Display
  • Full Duplex Speakerphone
  • 2 Gigabit Ethernet/PoE
  • EHS support

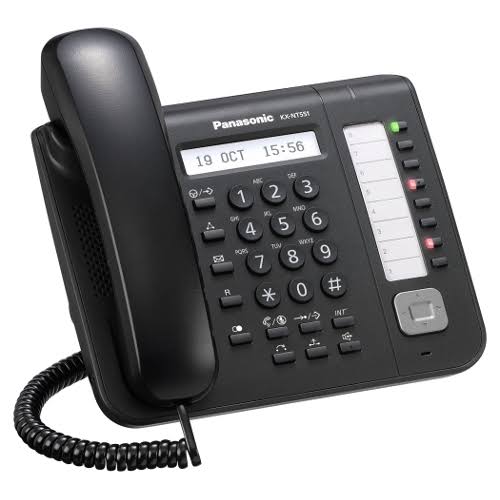

KX-NT551

  • HD Voice
  • 1-Line Backlight LCD Display
  • 8 Flexible CO Buttons
  • Full Duplex Speakerphone
  • 2 Gigabit Ethernet/PoE

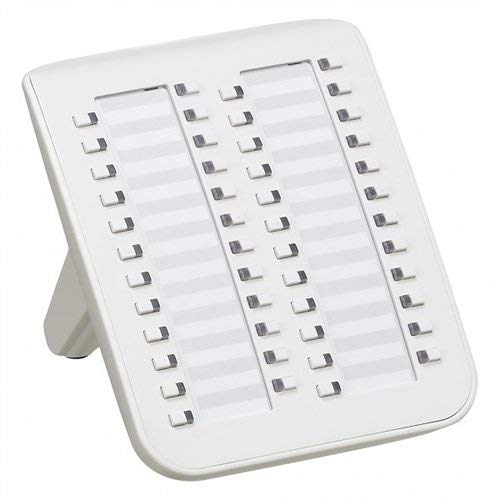

KX-NT505

Panasonic SIP Terminals

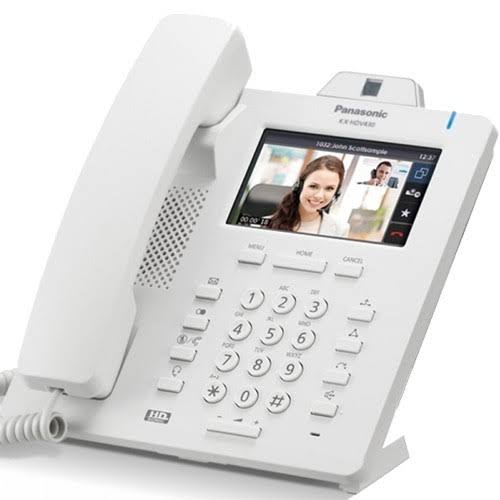

KX-HDV430

Video Communication

4.3 inch Backlight LCD Display

Colour Touch Display

3 x 8 Self Labelling, Programmable Buttons

2 Ethernet Port (1000 Base-T)

Power-over-Ethernet (PoE)

Full Duplex Speakerphone

Built-in Bluetooth® for Headset

EHS support

Available in Black and White

Wall Mount Kit Included

Option: KX-HDV20
KX-A424 (AC Adapter)

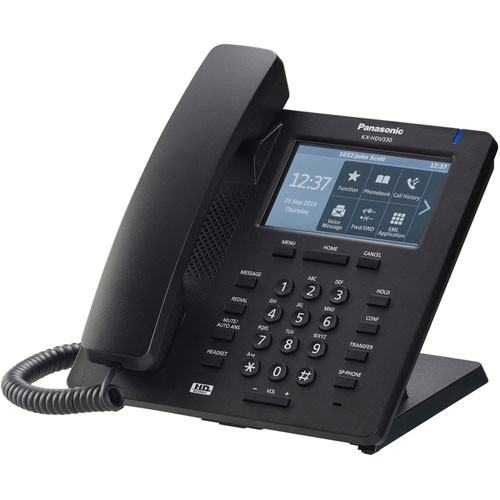

KX-HDV330

4.3 inch Backlight LCD Display

Colour Touch Display

3 x 8 Self Labelling, Programmable Buttons

2 Ethernet Port (1000 Base-T)

Power-over-Ethernet (PoE)

Full Duplex Speakerphone

Built-in Bluetooth® for Headset

EHS support

Available in Black and White

Wall Mount Kit Included

Option: KX-HDV20
KX-A422 or KX-A424 (AC Adapter)

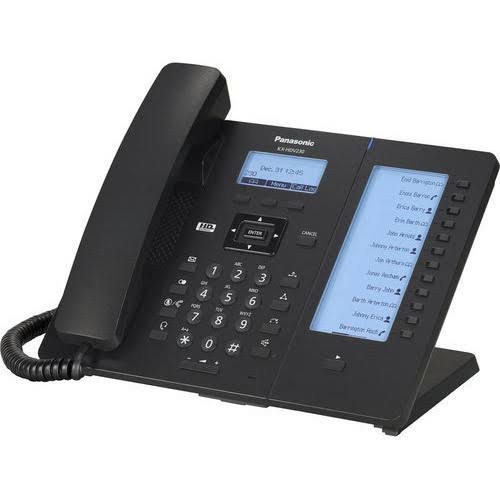

Product details:

2.3 inch Backlight LCD Display

5 inch Self Labelling Backlight LCD Display

2 x 12 Self Labelling, Programmable Buttons

2 Ethernet Port (1000 Base-T)

Power-over-Ethernet (PoE)

Full Duplex Speakerphone

EHS support

Available in Black and White

Wall Mount Kit Included

Option: KX-HDV20
KX-A422 or KX-A424 (AC Adapter)

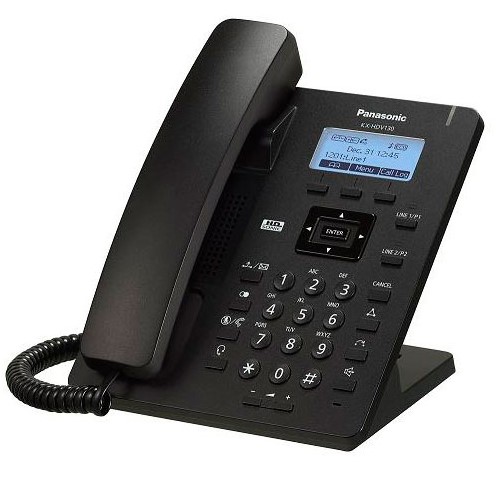

KX-HDV130

2.3 inch Backlight LCD Display

2 Programmable Buttons

2 Ethernet Port (100 Base-TX)

Power-over-Ethernet (PoE)

Full Duplex Speakerphone

Available in Black and White

Option: KX-A423 (AC Adapter)
KX-A440 (Wall Mount Kit)

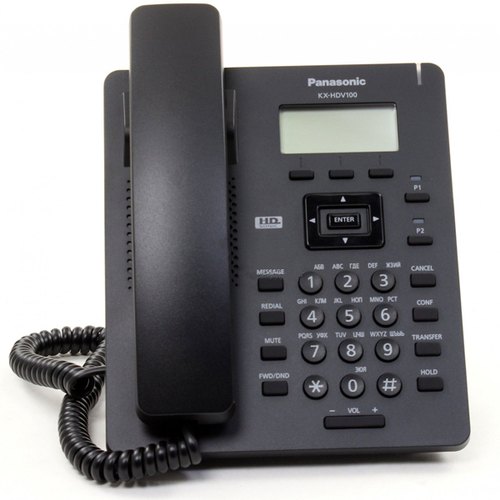

KX-HDV100

2.3 inch LCD Display

2 Programmable Buttons

1 Ethernet Port (100 Base-TX)

AC Adapter Included

Available in Black and White

Option: KX-A440 (Wall Mount Kit)
